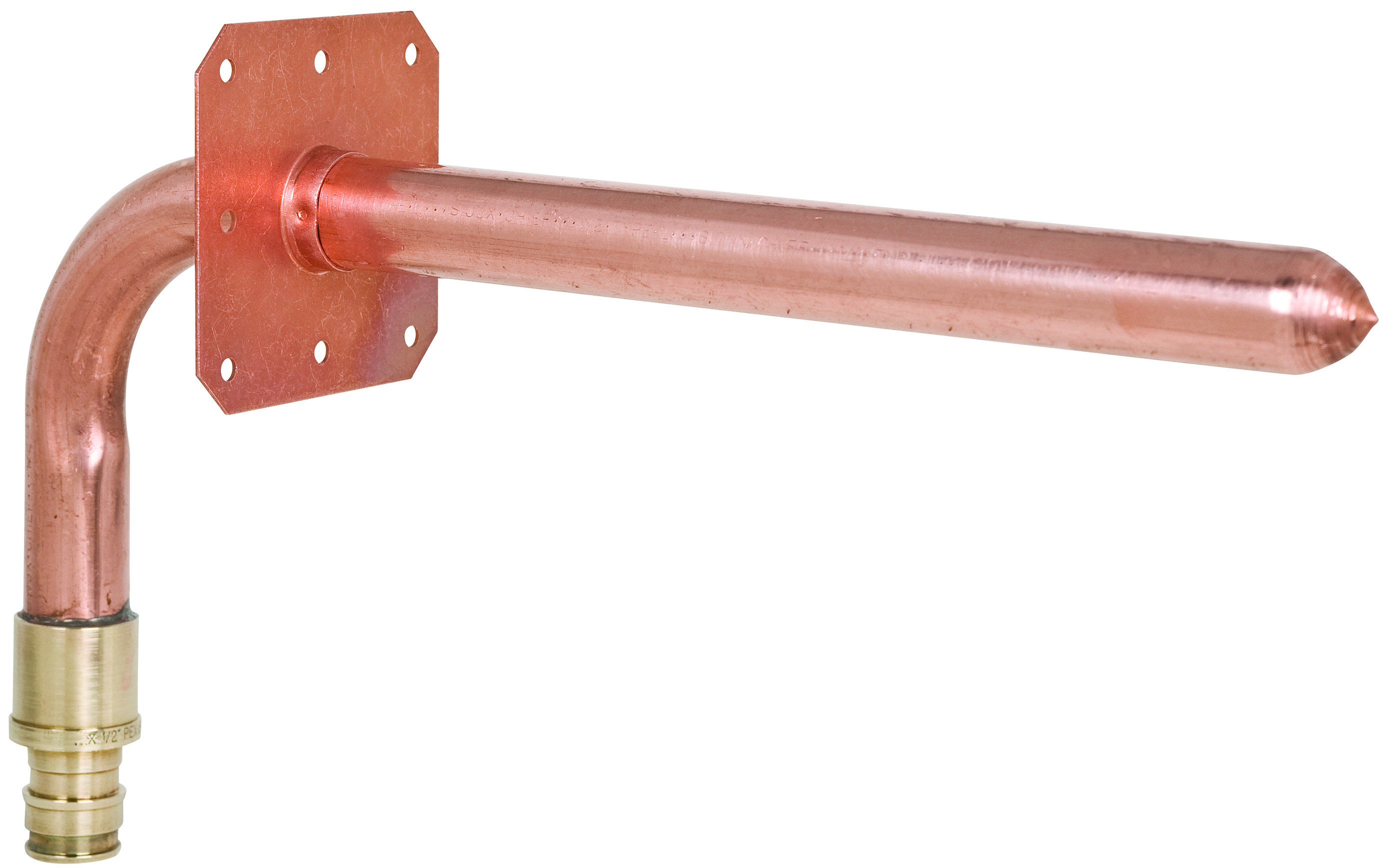

Square O Strap - 1/2'' F1960, 4'' × 8'' w/Strap, 10/Box
ASTM F1960 - Metal Fittings, Adapters & Connectors
F1960 Stub Out Elbow
- • Multiple mounting holes allow for installations on sides, bottom, or top
- • NL/DZR
- • Square O Straps affix easily to the Edge bracket or any backing board to provide solid installations
- • Combines versatility of copper stub outs with easy installation of PEX system
- • Prop 65 WARNING
- • Type L copper tube - Accepts sweat, push-fitting and compression valves
- • Integral square strap attaches to bracket or stud for solid installations
Product Information
| Item No | Description | Pkg | Min Qty | Case Qty | |
|---|---|---|---|---|---|
| Square O Strap | |||||
| B | 25 | 25 | |||
| ▶ | BI | 10 | 10 | ||
| B | 25 | 25 | |||
| B | 10 | 10 | |||
| Connection 1 Size | 1/2 IN |
| Connection 1 Type | F1960 |
| Connection 2 Size | 1/2 IN |
| Connection 2 Type | Closed |
| Height | 4 IN |
| Length | 8 IN |
| Square Strap? | Yes |
| Type | Stub Out Elbow |
No finish installation documents available for this product.
