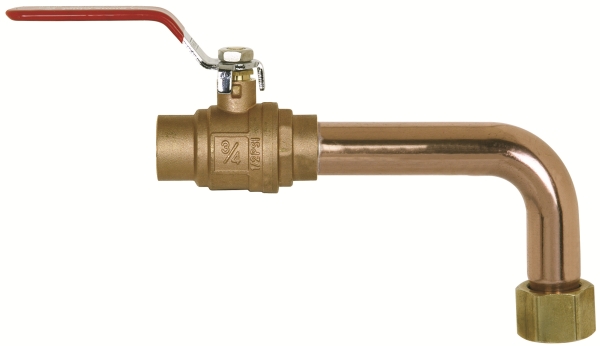

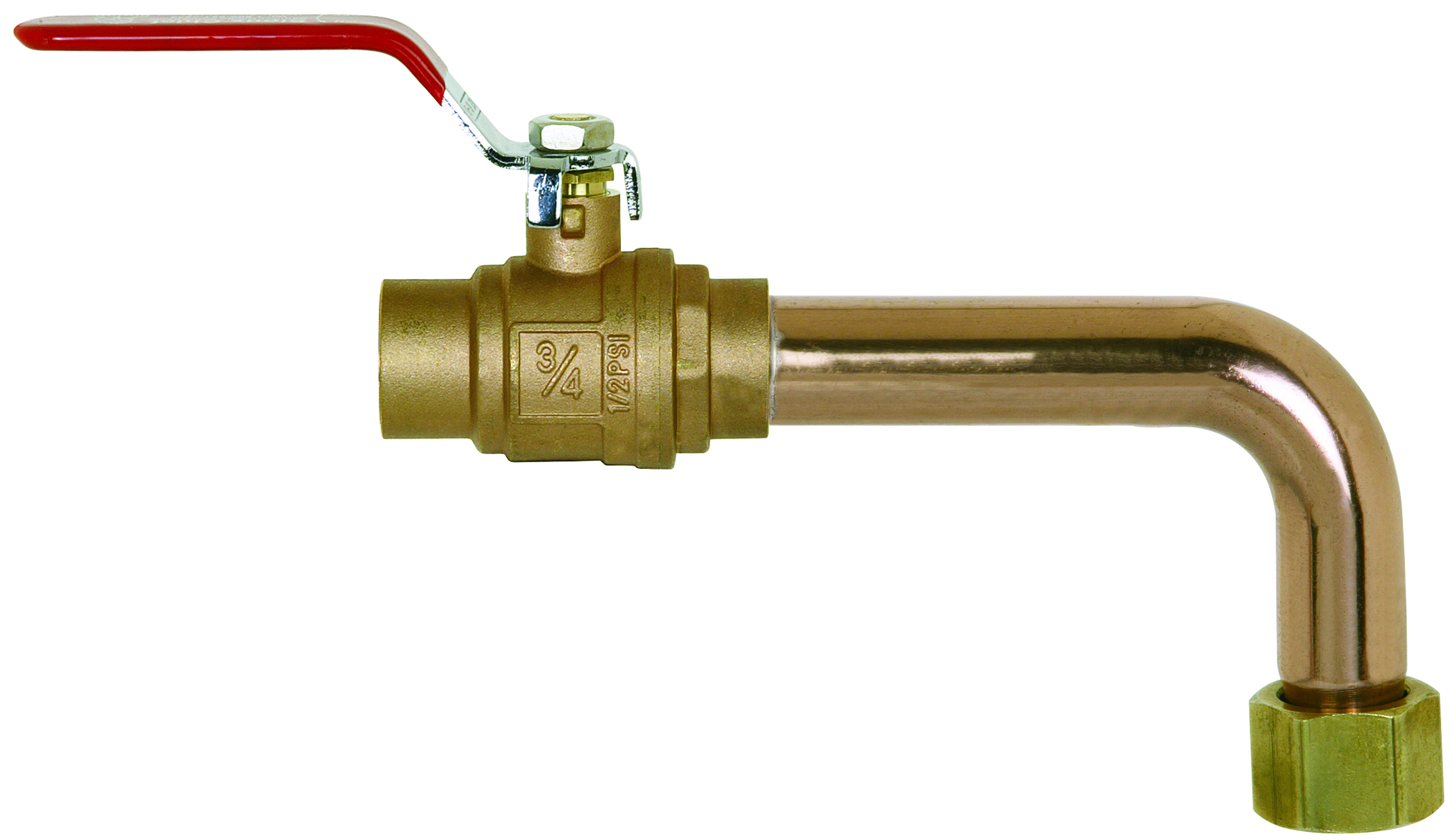

Valved, Full Port - 3/4'' FIP Swivel × 3/4'' FSWT, 3'' × 5''
Sweat Preformed Copper & Valves
Water Heater Connector

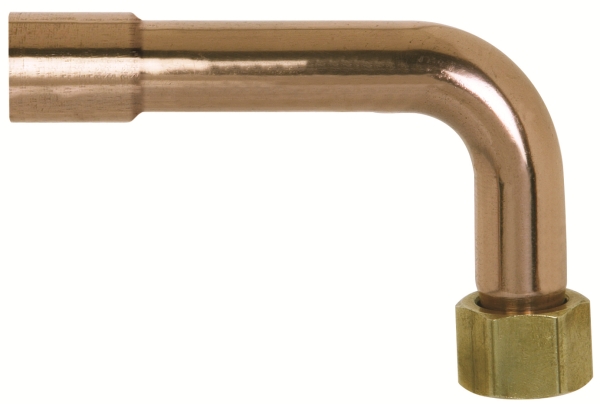

Female Sweat × FIP Elbow
- • Do NOT use thread sealant on FIP swivel threads
- • NL/DZR
- • Full-port ball valve available - swivel nut includes gasket.
- • Prop 65 WARNING
- • IAPMO/ANSI - Z1157, ASME - A112.4.14, CSA - B125.14, NSF/ANSI - 14, NSF/ANSI/CAN - 372, NSF/ANSI/CAN - 61
Product Information
| Item No | Description | Pkg | Min Qty | Case Qty | |
|---|---|---|---|---|---|
| Standard | |||||
| B | 25 | 25 | |||
| Valved, Full Port | |||||
| ▶ | B | 25 | 25 | ||
| Connection 1 Size | 3/4 IN |
| Connection 1 Type | FSWT |
| Connection 2 Size | 3/4 IN |
| Connection 2 Type | FIP-Swvl. |
| Length | 3 IN X 5 IN |
| Material | Copper |
| Type | Rigid |
| Valved? | Yes |
No rough-in installation documents available for this product.
No finish installation documents available for this product.
