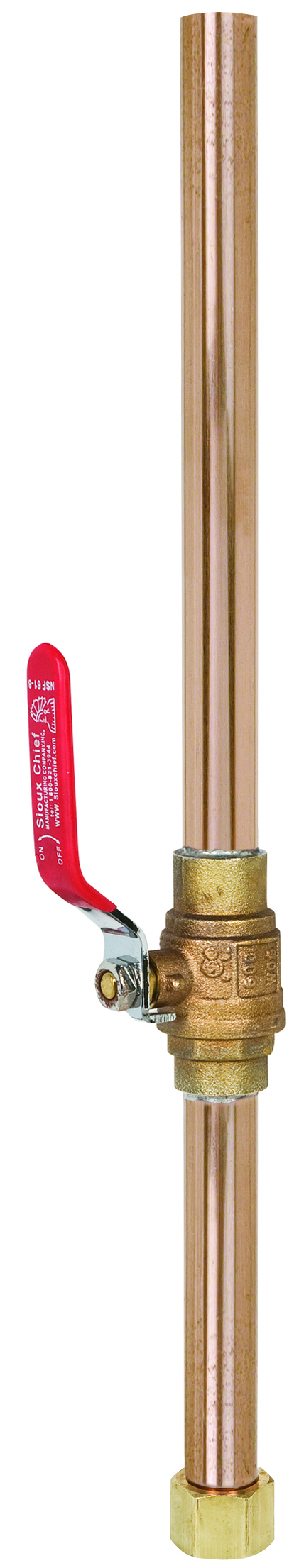

Valved, Full Port - 3/4'' FIP Swivel × 3/4'' MSWT, 18''
Sweat Preformed Copper & Valves
Water Heater Connector
FIP Swivel × Male Sweat
- • Do NOT use thread sealant on FIP swivel threads
- • NL/DZR
- • Ideal for new installations and water heater replacement.
- • Swivel nut includes gasket.
- • Male sweat connection can be used with press-fit or push-fit connection.
- • Prop 65 WARNING
- • NSF/ANSI/CAN - 372, IAPMO/ANSI - Z1157, ASME - A112.4.14, CSA - B125.14, NSF/ANSI - 14, NSF/ANSI/CAN - 61
Product Information
| Item No | Description | Pkg | Min Qty | Case Qty | |
|---|---|---|---|---|---|
| Standard | |||||
| B | 10 | 10 | |||
| Valved, Full Port | |||||
| ▶ | B | 10 | 10 | ||
| Connection 1 Size | 3/4 IN |
| Connection 1 Type | MSWT |
| Connection 2 Size | 3/4 IN |
| Connection 2 Type | FIP-Swvl. |
| Length | 18 IN |
| Material | Copper |
| Type | Rigid |
| Valved? | Yes |
