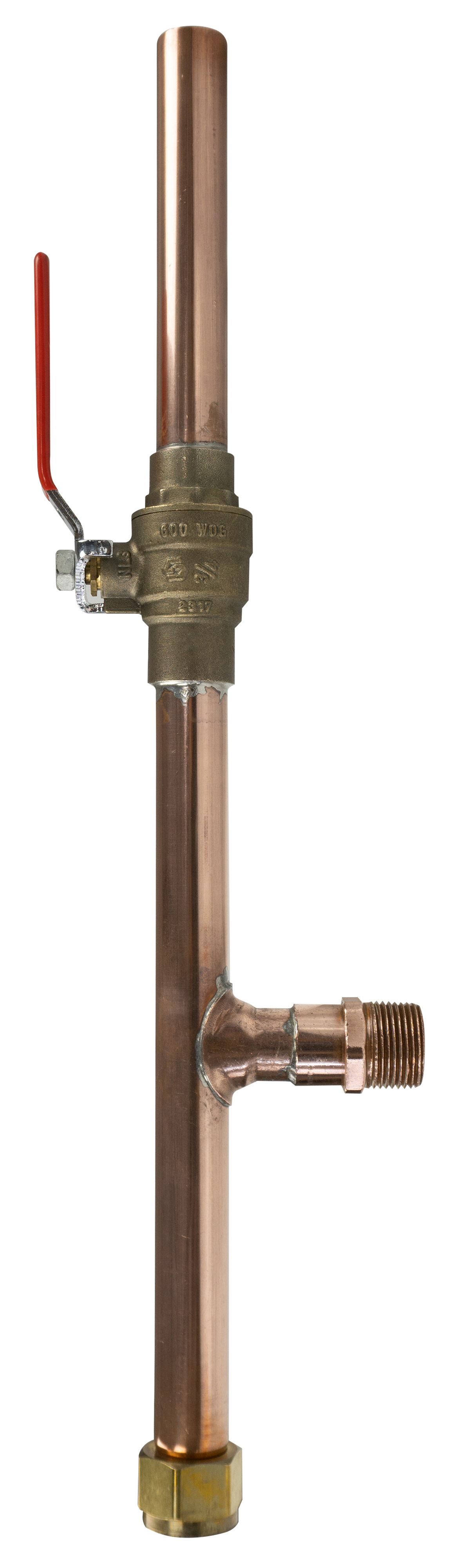

Male Sweat - 3/4'' FIP Swivel × 3/4'' MSWT, w/ 3/4'' MIP Branch, 18''
Sweat Preformed Copper & Valves
Water Heater Connector
Valved With Expansion Tank Branch, Full Port
- • Do NOT use thread sealant on FIP swivel threads
- • NL/DZR
- • Male sweat connection can be used with press-fit or push-fit connection.
- • Prop 65 WARNING
- • Type L copper tube with Full-Port ball valve and 3/4" MIP saddle branch.
- • Full-slip model slides over existing tube - Ideal for water heater replacement.
- • Swivel nut includes gasket.
- • IAPMO/ANSI - Z1157, ASME - A112.4.14, CSA - B125.14, NSF/ANSI - 14, NSF/ANSI/CAN - 372, NSF/ANSI/CAN - 61
Product Information
| Item No | Description | Pkg | Min Qty | Case Qty | |
|---|---|---|---|---|---|
| Male Sweat | |||||
| ▶ | B | 1 | 25 | ||
| Full Slip | |||||
| B | 1 | 25 | |||
| Branch Connection 1 Size | 3/4 IN |
| Branch Connection 1 Type | MIP |
| Connection 1 Size | 3/4 IN |
| Connection 1 Type | MSWT |
| Connection 2 Size | 3/4 IN |
| Connection 2 Type | FIP-Swvl. |
| Length | 18 IN |
| Material | Copper |
| Type | Rigid |
| Valved? | Yes |
No rough-in installation documents available for this product.
No finish installation documents available for this product.
