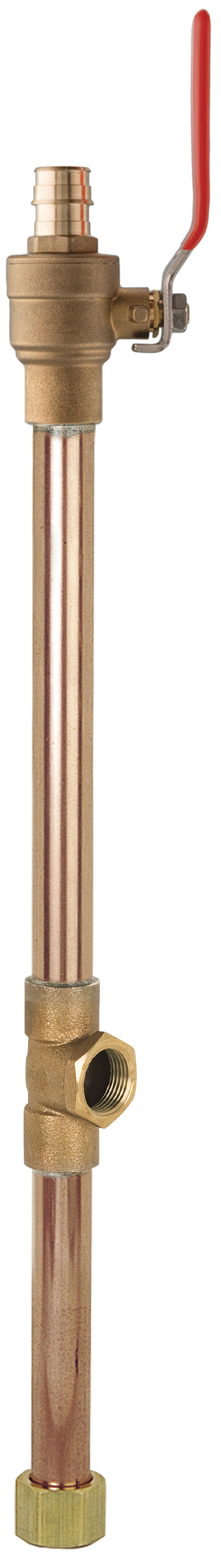

Valved, Full Port - 3/4'' F1960 × 3/4'' FIP Swivel, w/ 3/4'' FIP Branch, 18''
ASTM F1960 - Metal Fittings, Adapters & Connectors
F1960 Water Heater Connector
FIP Swivel Straight
- • Brass FIP swivel nut includes gasket
- • Do NOT use thread sealant on FIP swivel threads
- • Full flow – no restriction
- • Lead-free solder joint
- • Made from Type L copper tube
- • NL/DZR
- • Type L copper tube
- • Prop 65 WARNING
- • 600 WOG full port ball valve available
- • IAPMO/ANSI - Z1157, ASME - A112.4.14, CSA - B125.14, NSF/ANSI - 14, NSF/ANSI/CAN - 372
Product Information
| Item No | Description | Pkg | Min Qty | Case Qty | |
|---|---|---|---|---|---|
| Standard | |||||
| B | 25 | 25 | |||
| BI | 10 | 10 | |||
| Valved, Full Port | |||||
| B | 10 | 10 | |||
| ▶ | B | 10 | 10 | ||
| B | 10 | 10 | |||
| Thermal Expansion Valve, Full Port | |||||
| B | 10 | 10 | |||
| B | 10 | 10 | |||
| B | 10 | 10 | |||
| Adjustable Replacement Relief Port | |||||
| BI | 6 | 6 | |||
| Branch Connection 1 Size | 3/4 IN |
| Branch Connection 1 Type | FIP |
| Connection 1 Size | 3/4 IN |
| Connection 1 Type | F1960 |
| Connection 2 Size | 3/4 IN |
| Connection 2 Type | FIP-Swvl. |
| Length | 18 IN |
| Material | Copper |
| Type | Rigid |
| Valved? | Yes |
No finish installation documents available for this product.
