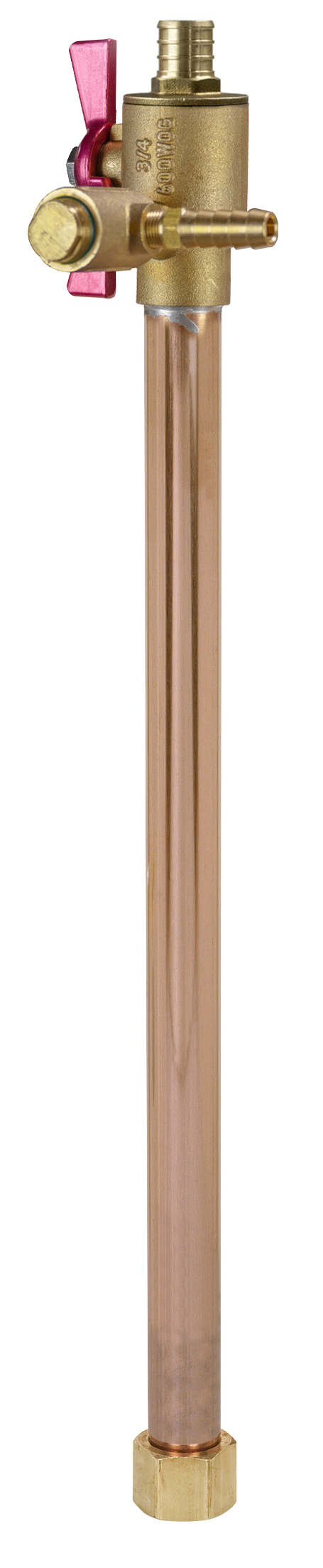

Thermal Expansion Valve, Full Port - 3/4'' F1807 × 3/4'' FIP Swivel, w/ Pressure Relief 3/8'' Hose Barb, 18''
ASTM F1807 Preformed Copper & Valves
F1807 Water Heater Connector
FIP Swivel Straight
- • Brass FIP swivel nut includes gasket
- • Do NOT use thread sealant on FIP swivel threads
- • Fitting with 600 WOG full port ball valve available
- • Full flow, dielectric fitting – no restriction
- • Lead-free solder joint
- • Type L copper tube
- • NL/DZR
- • 600 WOG full port ball valve available
- • Swivel nut with EPDM gasket – Do NOT use thread sealant on FIP swivel threads.
- • Type L copper tube
- • FIP branch model is perfect for expansion tank connection
- • Prop 65 WARNING
Product Information
| Item No | Description | Pkg | Min Qty | Case Qty | |
|---|---|---|---|---|---|
| Standard | |||||
| B | 25 | 25 | |||
| B | 25 | 25 | |||
| CI | 25 | 25 | |||
| Valved, Full Port | |||||
| BI | 10 | 10 | |||
| B | 10 | 10 | |||
| Thermal Expansion Valve, Full Port | |||||
| B | 10 | 10 | |||
| ▶ | B | 10 | 10 | ||
| B | 10 | 10 | |||
| Connection 1 Size | 3/4 IN |
| Connection 1 Type | F1807 |
| Connection 2 Size | 3/4 IN |
| Connection 2 Type | FIP-Swvl. |
| Relief Connection Size | 3/8 IN |
| Relief Connection Type | Barbed |
| Relief PSI | 125 PSI |
| Type | Water Heater Connector |
