Full Port - 1'' F3347 PEX Press
ASTM F3347 Preformed Copper & Valves

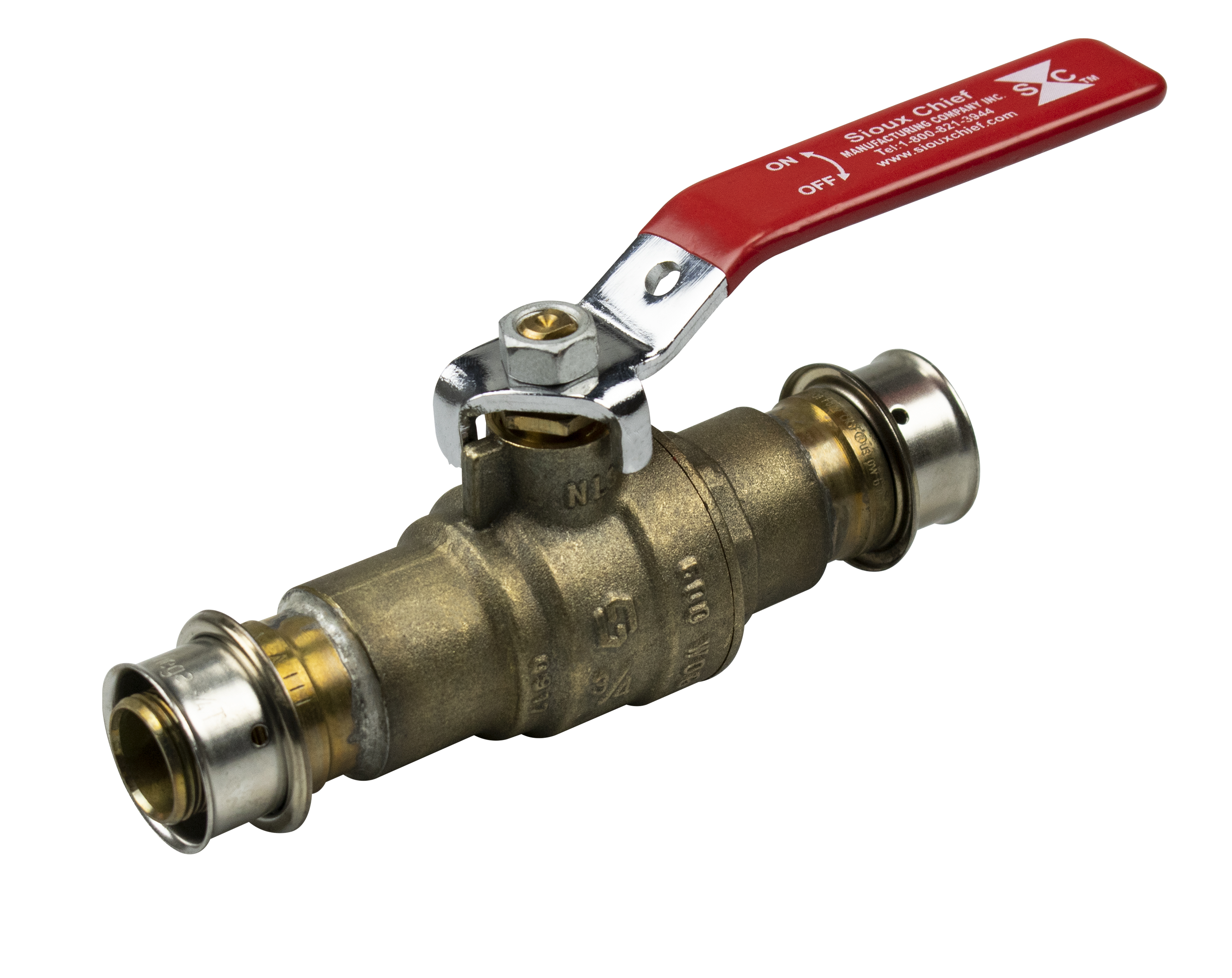

F3347 Brass Ball Valve
- • NL/DZR Brass
- • Connect PEX tube to all ASTM F3347 fittings using a properly calibrated press sleeve tool
- • Full-Port ball valve with chrome-plated ball and blowout-proof stem
- • Prop 65 WARNING
- • IAPMO/ANSI - Z1157, ASME - A112.4.14, CSA - B125.14, NSF/ANSI - 14, NSF/ANSI/CAN - 372, NSF/ANSI/CAN - 61
Product Information
| Connection 1 Size | 1 IN |
| Connection 1 Type | F3347 |
| Connection 2 Size | 1 IN |
| Connection 2 Type | F1807 |
| Drain Port? | No |
No rough-in installation documents available for this product.
No finish installation documents available for this product.
