With Frame - 1/2'' F1807 PEX
Lav/Toilet/Dishwasher - 3/8" Comp. Outlet

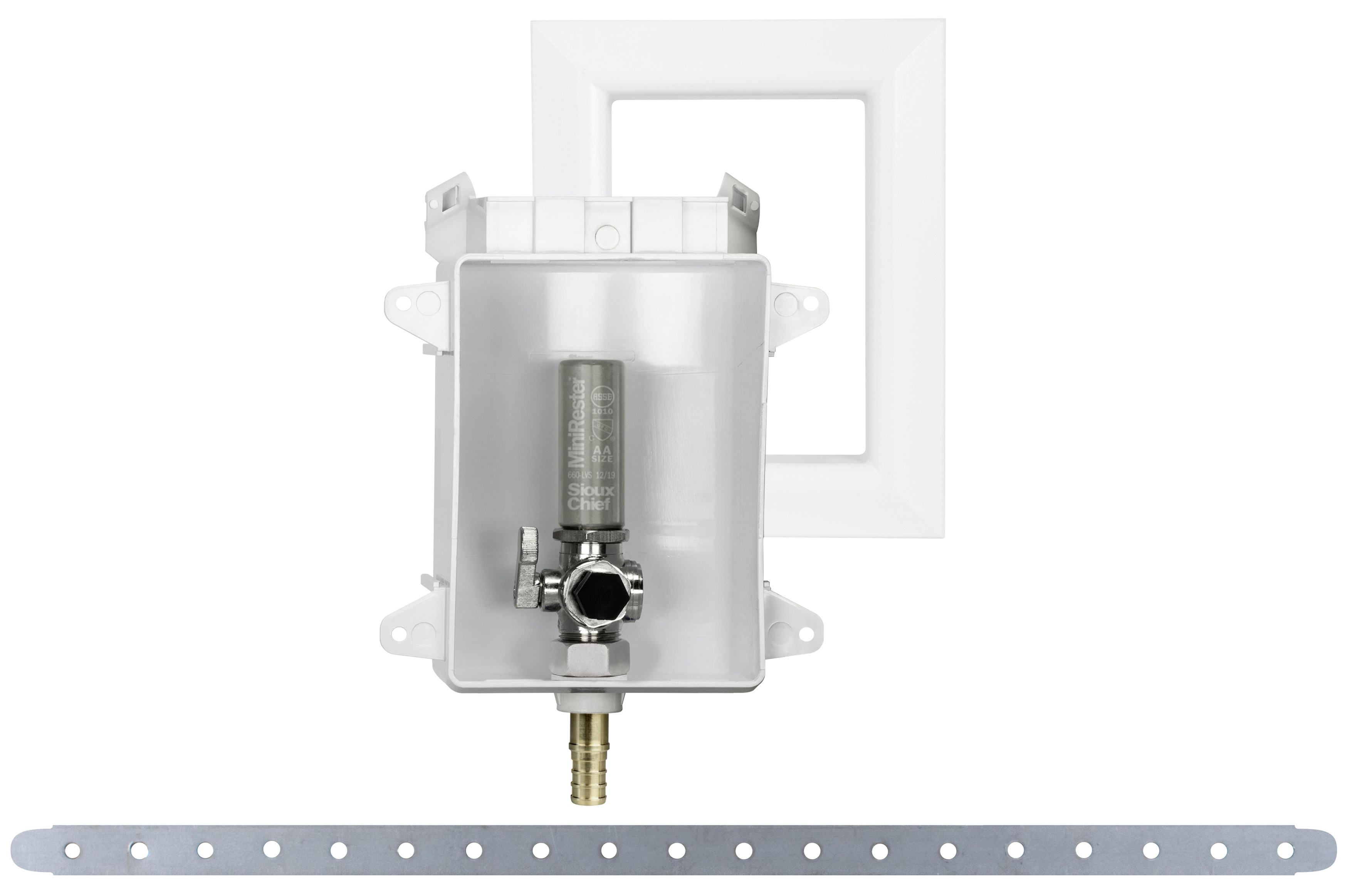

OxBox™ 3/8" Outlet-Single valve
Arrester
- • Durable ABS box mounts securely to stud or between studs.
- • Patent #7,360,553 & #7,735,511
- • Quarter-turn ball valve with 3/8" OD compression connection.
- • Included debris covers protect box/valve from dust, mud, and paint.
- • Prop 65 WARNING
- • IAPMO PS - 54, ASME - A112.18.1, CSA - B125.1, NSF/ANSI - 14, NSF/ANSI/CAN - 372, NSF/ANSI/CAN - 61
Product Information
| Item No | Description | Pkg | Min Qty | Case Qty | |
|---|---|---|---|---|---|
| With Frame | |||||
| BI | 10 | 10 | |||
| BI | 10 | 10 | |||
| BI | 10 | 10 | |||
| BI | 10 | 10 | |||
| ▶ | BI | 10 | 10 | ||
| Arrester? | Yes |
| Brand | OxBox™ |
| Connection 1 Size | 1/2 IN |
| Connection 1 Type | F1807 |
| Connection 2 Size | 3/8 IN |
| Connection 2 Type | Comp. |
| Fire-Rated? | No |
| Type | With Frame |
No rough-in installation documents available for this product.
No finish installation documents available for this product.
