Rough-In Outlet - 1/2'' F1960 PEX
Ice Maker - 1/4" Comp. Outlet
ProPlate™ 1/4" Outlet

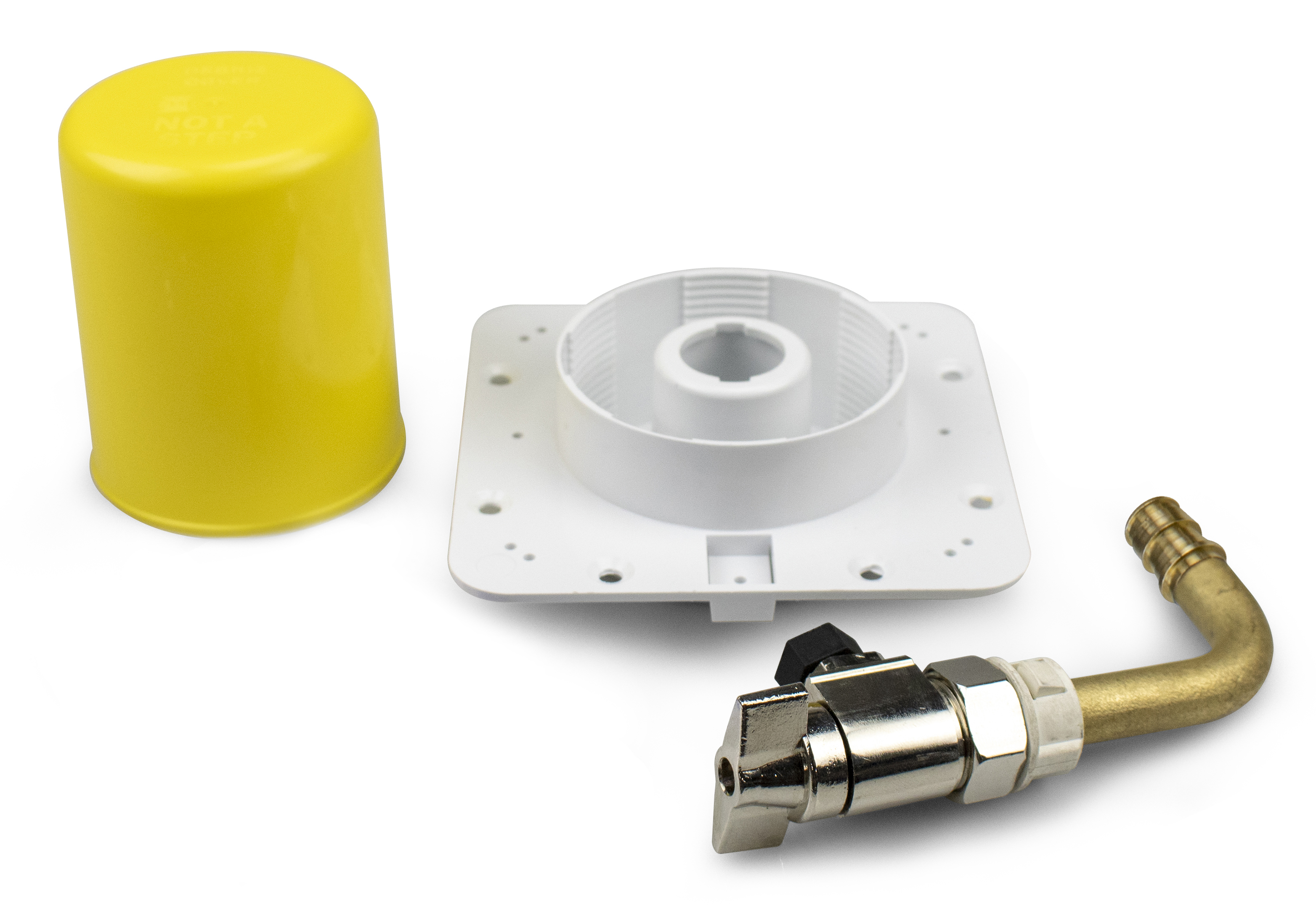

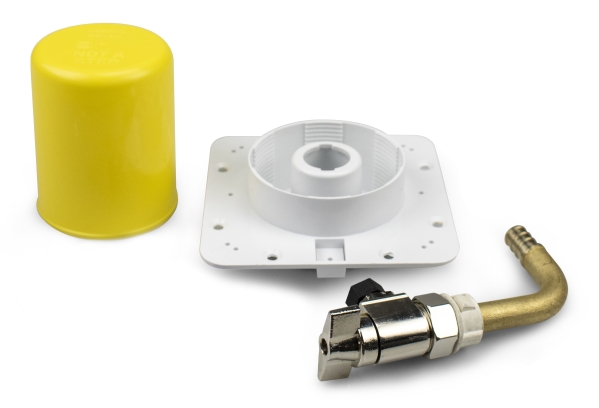

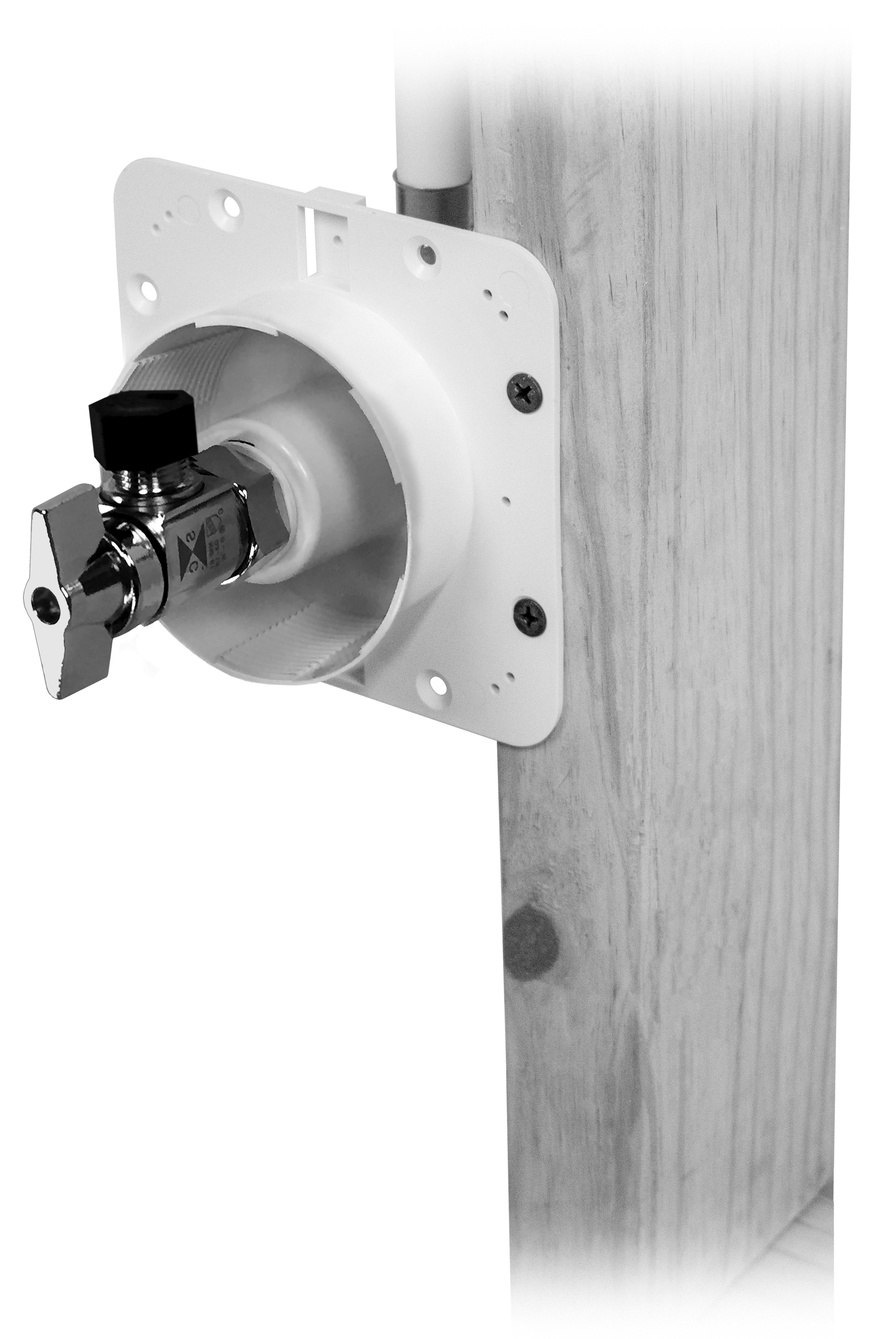

- • Installs at Rough - incorporates valve, escutcheon, stub out and bracket in one product.
- • Prop 65 WARNING

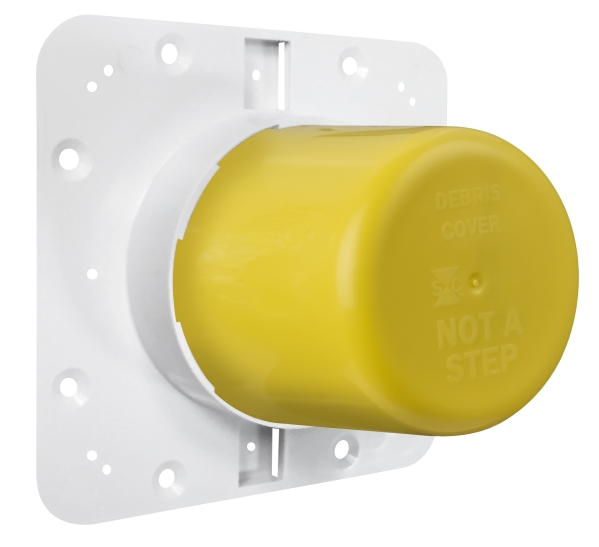

- • Debris cover included.
- • Patented, replaceable valve design.
- • Quarter-turn ball valve with 1/4" OD compression connection.
- • ASME - A112.18.1, CSA - B125.1, NSF/ANSI - 14, NSF/ANSI/CAN - 372, NSF/ANSI/CAN - 61, IAPMO PS - 54
Product Information
| Arrester? | No |
| Brand | ProPlate™ |
| Connection 1 Size | 1/2 IN |
| Connection 1 Type | F1960 |
| Connection 2 Size | 1/4 IN |
| Connection 2 Type | Comp. |
| Fire-Rated? | No |
| Type | No Frame |
