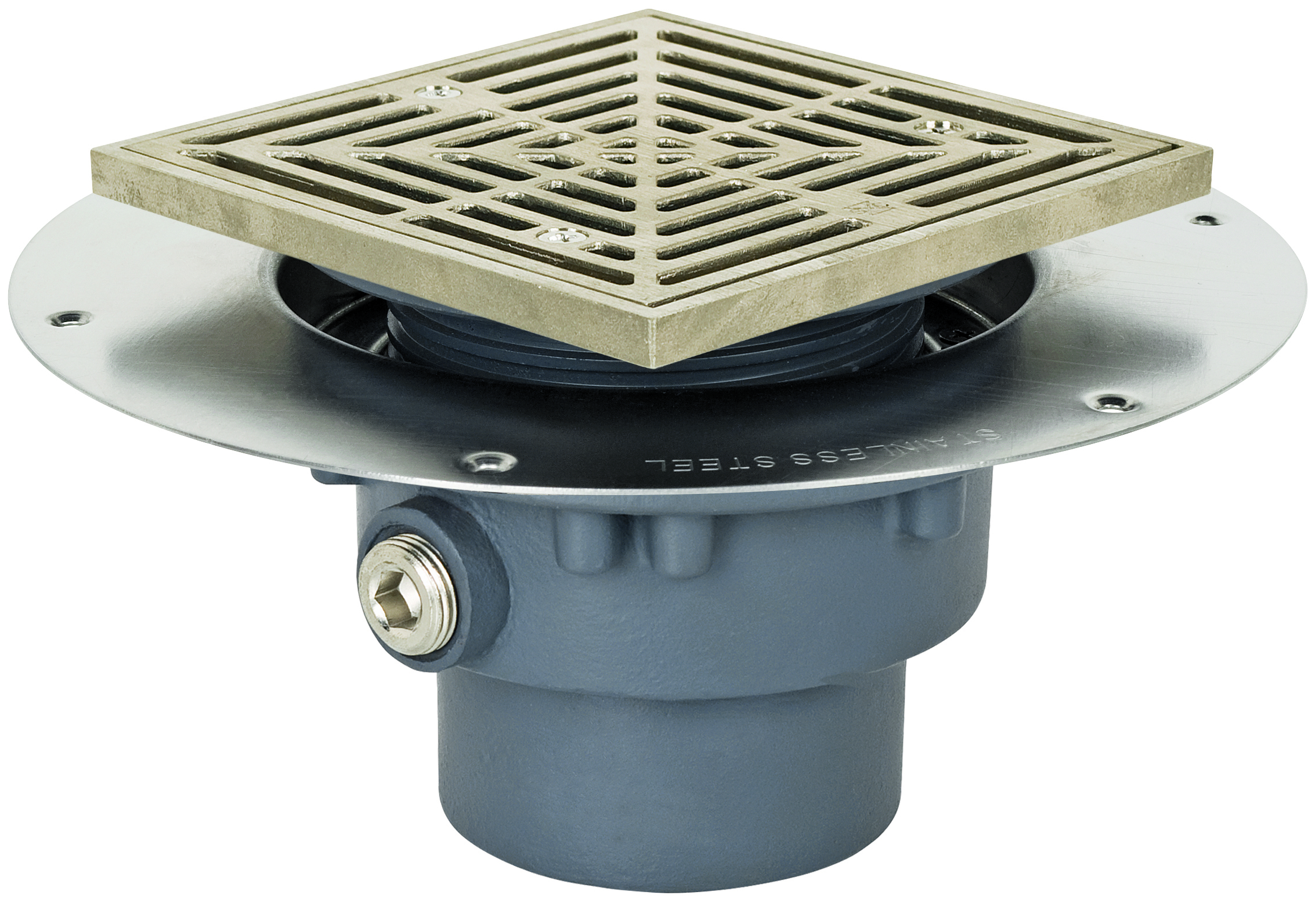

Nickel-Bronze Ring & Strainer - 3'' No-Hub - 5-7/8'' Sqr Ring & Strainer
Halo™ Floor Drains
Halo™ Floor Drains
Cast Iron - No-Hub Connection
- • Finish Line™ models are adjustable AFTER the pour
- • Head adjusts up to 3/4" above flush to accommodate most flooring types
- • Prop 65 WARNING
- • 2" or 3" no-hub connection
- • Great for loft remodels, second floor utility rooms/laundry rooms, etc.
- • Installs easily in cored concrete floors or corrugated decks
- • ASME - A112.6.2, CSA - B79.3
Product Information
- Options: Add suffix to item no.
- M = Clamping collar kit (1)
- V = Vandal-Resistant Strainer
- B = Complies with BABAA (2)
- E = Extended Ring (2)
- 1: Add 'M' code after dash - other options to end of item no.. 2: For round nickel bronze ring/strainer only.
| Brand | Halo™ |
| Connection 1 Size | 3 IN |
| Connection 1 Type | No-Hub |
| Load Rating | Light-Duty |
| Strainer Material | Nickel-Bronze |
| Strainer Size | 5-7/8 IN |
| Strainer Style | Square |
| Type | Above-Grade |
No rough-in installation documents available for this product.
No finish installation documents available for this product.
