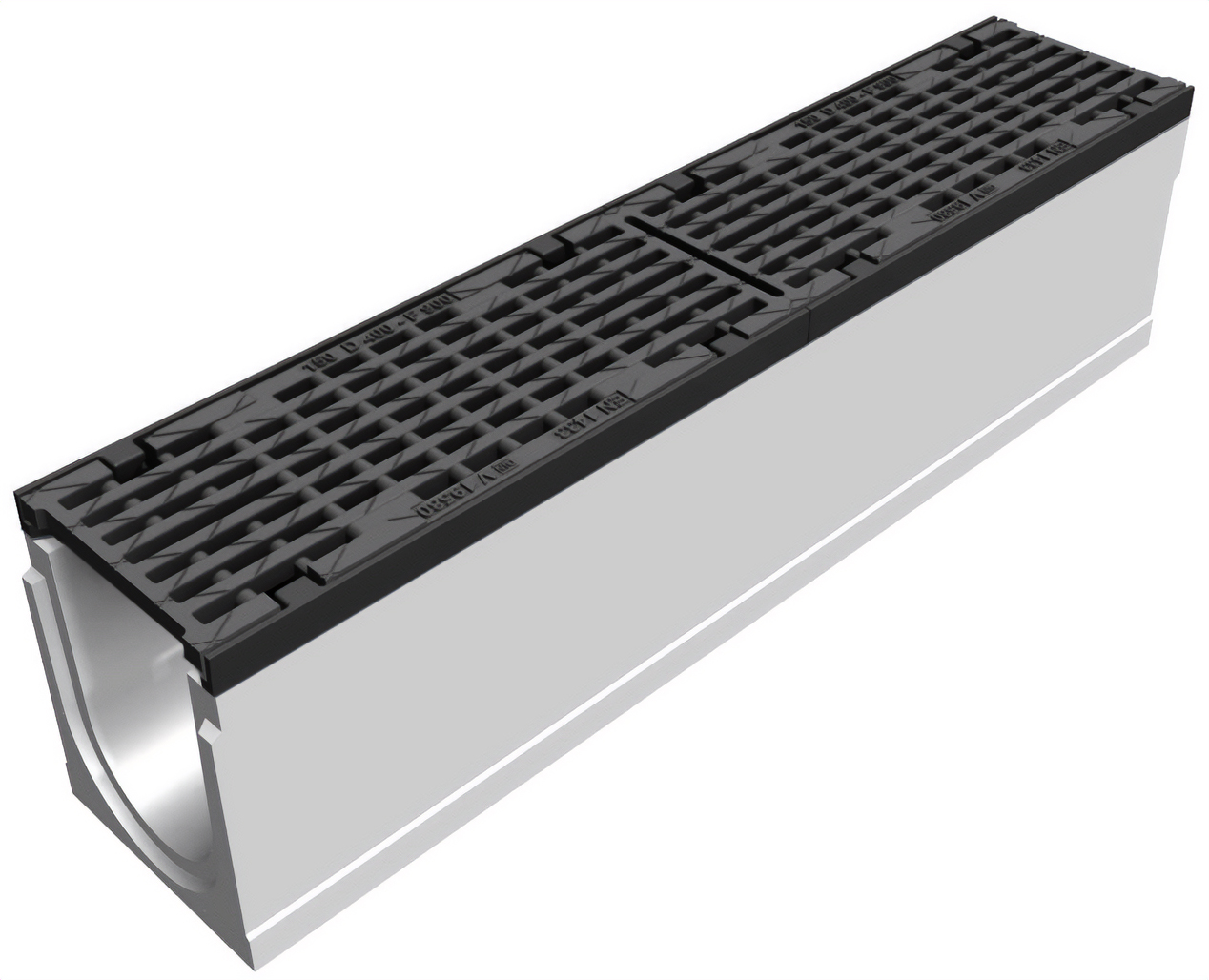

865-M6S07FA

Channels - Class F Grate - One-Meter, 6'' Wide, Slope # 7 w/ Class F ADA Ductile Iron Grate

HydroTec™ System

HydroTec™ MAXI System

Maxi 150 - 6" Wide

• Ductile iron grates with load ratings up to Class F.
• Patented grate-locking system – no fasteners needed.
• Use in industrial areas, airports, heavy-traffic loading areas, etc.
• 6" wide, fiber-reinforced concrete channels with ductile iron edge rails for ultimate strength and durability.
• Optional F1-Locking feature available
• Prop 65 WARNING

Product Information

	Item No	Description	Pkg	Min Qty	Case Qty
Channels - Class D Grate
	865-M6N005DA	Half-Meter, 6'' Wide × 8.27'' Height, Neutral w/ Class D ADA Ductile Iron Grate	B	1	1
	865-M6N005SDA	Half-Meter, 6'' Wide × 8.27'' Height, Neutral, Side Out w/ Class D ADA Ductile Iron Grate	B	1	1
	865-M6N00BDA	One-Meter, 6'' Wide × 8.27'' Height, Neutral, Bottom Out w/ Class D ADA Ductile Iron Grate	B	1	1
	865-M6N00DA	One-Meter, 6'' Wide × 8.27'' Height, Neutral w/ Class D ADA Ductile Iron Grate	B	1	1
	865-M6N055DA	Half-Meter, 6'' Wide × 10.24'' Height, Neutral w/ Class D ADA Ductile Iron Grate	B	1	1
	865-M6N055SDA	Half-Meter, 6'' Wide × 10.24'' Height, Neutral, Side Out w/ Class D ADA Ductile Iron Grate	B	1	1
	865-M6N05BDA	One-Meter, 6'' Wide × 10.24'' Height, Neutral, Bottom Out w/ Class D ADA Ductile Iron Grate	B	1	1
	865-M6N05DA	One-Meter, 6'' Wide × 10.24'' Height, Neutral w/ Class D ADA Ductile Iron Grate	B	1	1
	865-M6N105DA	Half-Meter, 6'' Wide × 12.20'' Height, Neutral w/ Class D ADA Ductile Iron Grate	B	1	1
	865-M6N105SDA	Half-Meter, 6'' Wide × 12.20'' Height, Neutral, Side Out w/ Class D ADA Ductile Iron Grate	B	1	1
	865-M6N10BDA	One-Meter, 6'' Wide × 12.20'' Height, Neutral, Bottom Out w/ Class D ADA Ductile Iron Grate	B	1	1
	865-M6N10DA	One-Meter, 6'' Wide × 12.20'' Height, Neutral w/ Class D ADA Ductile Iron Grate	B	1	1
	865-M6S01DA	One-Meter, 6'' Wide, Slope # 1 w/ Class D ADA Ductile Iron Grate	B	1	1
	865-M6S02DA	One-Meter, 6'' Wide, Slope # 2 w/ Class D ADA Ductile Iron Grate	B	1	1
	865-M6S03DA	One-Meter, 6'' Wide, Slope # 3 w/ Class D ADA Ductile Iron Grate	B	1	1
	865-M6S04DA	One-Meter, 6'' Wide, Slope # 4 w/ Class D ADA Ductile Iron Grate	B	1	1
	865-M6S05DA	One-Meter, 6'' Wide, Slope # 5 w/ Class D ADA Ductile Iron Grate	B	1	1
	865-M6S06DA	One-Meter, 6'' Wide, Slope # 6 w/ Class D ADA Ductile Iron Grate	B	1	1
	865-M6S07DA	One-Meter, 6'' Wide, Slope # 7 w/ Class D ADA Ductile Iron Grate	B	1	1
	865-M6S08DA	One-Meter, 6'' Wide, Slope # 8 w/ Class D ADA Ductile Iron Grate	B	1	1
	865-M6S09DA	One-Meter, 6'' Wide, Slope # 9 w/ Class D ADA Ductile Iron Grate	B	1	1
	865-M6S10DA	One-Meter, 6'' Wide, Slope # 10 w/ Class D ADA Ductile Iron Grate	B	1	1
Channels - Class F Grate
	865-M6N005FA	Half-Meter, 6'' Wide × 8.27'' Height, Neutral w/ Class F ADA Ductile Iron Grate	B	1	1
	865-M6N005SFA	Half-Meter, 6'' Wide × 8.27'' Height, Neutral, Side Out w/ Class F ADA Ductile Iron Grate	B	1	1
	865-M6N00BFA	One-Meter, 6'' Wide × 8.27'' Height, Neutral, Bottom Out w/ Class F ADA Ductile Iron Grate	B	1	1
	865-M6N00FA	One-Meter, 6'' Wide × 8.27'' Height, Neutral w/ Class F ADA Ductile Iron Grate	B	1	1
	865-M6N055FA	Half-Meter, 6'' Wide × 10.24'' Height, Neutral w/ Class F ADA Ductile Iron Grate	B	1	1
	865-M6N055SFA	Half-Meter, 6'' Wide × 10.24'' Height, Neutral, Side Out w/ Class F ADA Ductile Iron Grate	B	1	1
	865-M6N05BFA	One-Meter, 6'' Wide × 10.24'' Height, Neutral, Bottom Out w/ Class F ADA Ductile Iron Grate	B	1	1
	865-M6N05FA	One-Meter, 6'' Wide × 10.24'' Height, Neutral w/ Class F ADA Ductile Iron Grate	B	1	1
	865-M6N105FA	Half-Meter, 6'' Wide × 12.20'' Height, Neutral w/ Class F ADA Ductile Iron Grate	B	1	1
	865-M6N105SFA	Half-Meter, 6'' Wide × 12.20'' Height, Neutral, Side Out w/ Class F ADA Ductile Iron Grate	B	1	1
	865-M6N10BFA	One-Meter, 6'' Wide × 12.20'' Height, Neutral, Bottom Out w/ Class F ADA Ductile Iron Grate	B	1	1
	865-M6N10FA	One-Meter, 6'' Wide × 12.20'' Height, Neutral w/ Class F ADA Ductile Iron Grate	B	1	1
	865-M6S01FA	One-Meter, 6'' Wide, Slope # 1 w/ Class F ADA Ductile Iron Grate	B	1	1
	865-M6S02FA	One-Meter, 6'' Wide, Slope # 2 w/ Class F ADA Ductile Iron Grate	B	1	1
	865-M6S03FA	One-Meter, 6'' Wide, Slope # 3 w/ Class F ADA Ductile Iron Grate	B	1	1
	865-M6S04FA	One-Meter, 6'' Wide, Slope # 4 w/ Class F ADA Ductile Iron Grate	B	1	1
	865-M6S05FA	One-Meter, 6'' Wide, Slope # 5 w/ Class F ADA Ductile Iron Grate	B	1	1
	865-M6S06FA	One-Meter, 6'' Wide, Slope # 6 w/ Class F ADA Ductile Iron Grate	B	1	1
▶	865-M6S07FA	One-Meter, 6'' Wide, Slope # 7 w/ Class F ADA Ductile Iron Grate	B	1	1
	865-M6S08FA	One-Meter, 6'' Wide, Slope # 8 w/ Class F ADA Ductile Iron Grate	B	1	1
	865-M6S09FA	One-Meter, 6'' Wide, Slope # 9 w/ Class F ADA Ductile Iron Grate	B	1	1
	865-M6S10FA	One-Meter, 6'' Wide, Slope # 10 w/ Class F ADA Ductile Iron Grate	B	1	1
Channels - Class F Grate with F1-Locking Feature
	865-M6N005F1A	Half-Meter, 6'' Wide × 8.27'' Height, Neutral w/ F1 Class F ADA Ductile Iron Grate	B	1	1
	865-M6N005SF1A	Half-Meter, 6'' Wide × 8.27'' Height, Neutral, Side Out w/ F1 Class F ADA Ductile Iron Grate	B	1	1
	865-M6N00BF1A	One-Meter, 6'' Wide × 8.27'' Height, Neutral, Bottom Out w/ F1 Class F ADA Ductile Iron Grate	B	1	1
	865-M6N00F1A	One-Meter, 6'' Wide × 8.27'' Height, Neutral w/ F1 Class F ADA Ductile Iron Grate	B	1	1
Accessories
	865-6BK	Installation Bracket for Maxi 150 Channels	B	1	1
	865-6LR	Grate-Locking Rod For 6'' Channels	B	1	1
	865-6PC	PVC S&D Pipe Connection for 6" Outs	B	1	1
	865-6RS	Rubber Sleeve/Seal For 6" Bottom Outs	B	1	1
	865-6UC	6'' Universal End Cap - Open & Closed	BI	1	20
	865-M6CBDA	Half-Meter, Catch Basin w/ Galv Basket And Class D Ductile Iron ADA Grate - 6'' Outlet	B	1	1
	865-M6CBF1A	Half-Meter, Catch Basin w/ Galv Basket And F1 Class F ADA Grate - 6'' Outlet	B	1	1
	865-M6CBFA	Half-Meter, Catch Basin w/ Galv Basket And Class F ADA Ductile Iron Grate - 6'' Outlet	B	1	1
