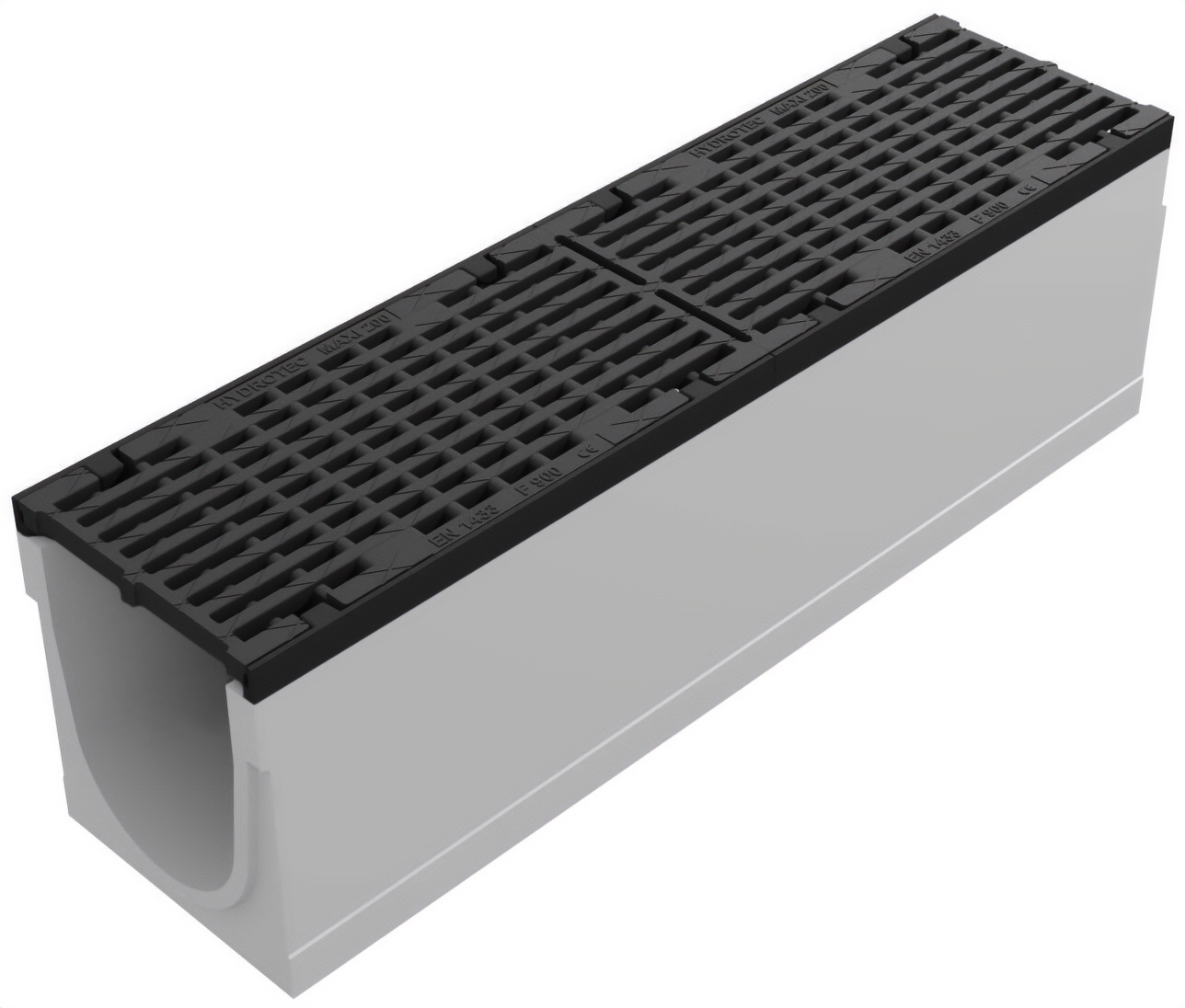

865-M8N00FA

Channels - Class F Grate - One-Meter, 8'' Wide × 12.20'' Height w/ Class F ADA Ductile Iron Grate

HydroTec™ System

HydroTec™ MAXI System

Maxi 200 - 8" Wide

• Ductile iron grates with load ratings up to Class F.
• Patented grate-locking system – no fasteners needed.
• Use in industrial areas, airports, heavy-traffic loading areas, etc.
• 8" wide, fiber-reinforced concrete channels with ductile iron edge rails for ultimate strength and durability.
• Optional F1-Locking feature available
• Prop 65 WARNING

Product Information

	Item No	Description	Pkg	Min Qty	Case Qty
Channels - Class D Grate
	865-M8N005DA	Half-Meter, 8'' Wide × 12.20'' Height w/ Class D ADA Ductile Iron Grate	B	1	1
	865-M8N005SDA	Half-Meter, 8'' Wide × 12.20'' Height, Side Out w/ Class D ADA Ductile Iron Grate	B	1	1
	865-M8N00BDA	One-Meter, 8'' Wide × 12.20'' Height, Bottom Out w/ Class D ADA Ductile Iron Grate	B	1	1
	865-M8N00DA	One-Meter, 8'' Wide × 12.20'' Height w/ Class D ADA Ductile Iron Grate	B	1	1
Channels - Class F Grate
	865-M8N005FA	Half-Meter, 8'' Wide × 12.20'' Height w/ Class F ADA Ductile Iron Grate	B	1	1
	865-M8N005SFA	Half-Meter, 8'' Wide × 12.20'' Height, Side Out w/ Class F ADA Ductile Iron Grate	B	1	1
	865-M8N00BFA	One-Meter, 8'' Wide × 12.20'' Height, Bottom Out w/ Class F ADA Ductile Iron Grate	B	1	1
▶	865-M8N00FA	One-Meter, 8'' Wide × 12.20'' Height w/ Class F ADA Ductile Iron Grate	B	1	1
Channels - Class F Grate with F1-Locking Feature
	865-M8N005F1A	Half-Meter, 8'' Wide × 12.20'' Height w/ F1 Class F ADA Ductile Iron Grate	B	1	1
	865-M8N005SF1A	Half-Meter, 8'' Wide × 12.20'' Height, Side Out w/ F1 Class F ADA Ductile Iron Grate	B	1	1
	865-M8N00BF1A	One-Meter, 8'' Wide × 12.20'' Height, Bottom Out w/ F1 Class F ADA Ductile Iron Grate	B	1	1
	865-M8N00F1A	One-Meter, 8'' Wide × 12.20'' Height w/ F1 Class F ADA Ductile Iron Grate	B	1	1
Accessories
	865-8BK	Installation Bracket for Maxi 200 Channels	B	1	1
	865-8ECD	8" Closed End Cap - 1 Piece Iron	B	1	1
	865-8LR	Grate-Locking Rod For 8'' Channels	B	1	1
	865-8OCD	8" Open End Cap - 1 Piece Iron	B	1	1
	865-M8CBDA	Half-Meter, Catch Basin w/ Galv Basket And Class D ADA Ductile Iron Grate - 6'' Outlet	B	1	1
	865-M8CBF1A	Half-Meter, Catch Basin w/ Galv Basket And F1 Class F ADA Ductile Iron Grate - 6'' Outlet	B	1	1
	865-M8CBFA	Half-Meter, Catch Basin w/ Galv Basket And Class F ADA Ductile Iron Grate - 6'' Outlet	B	1	1
