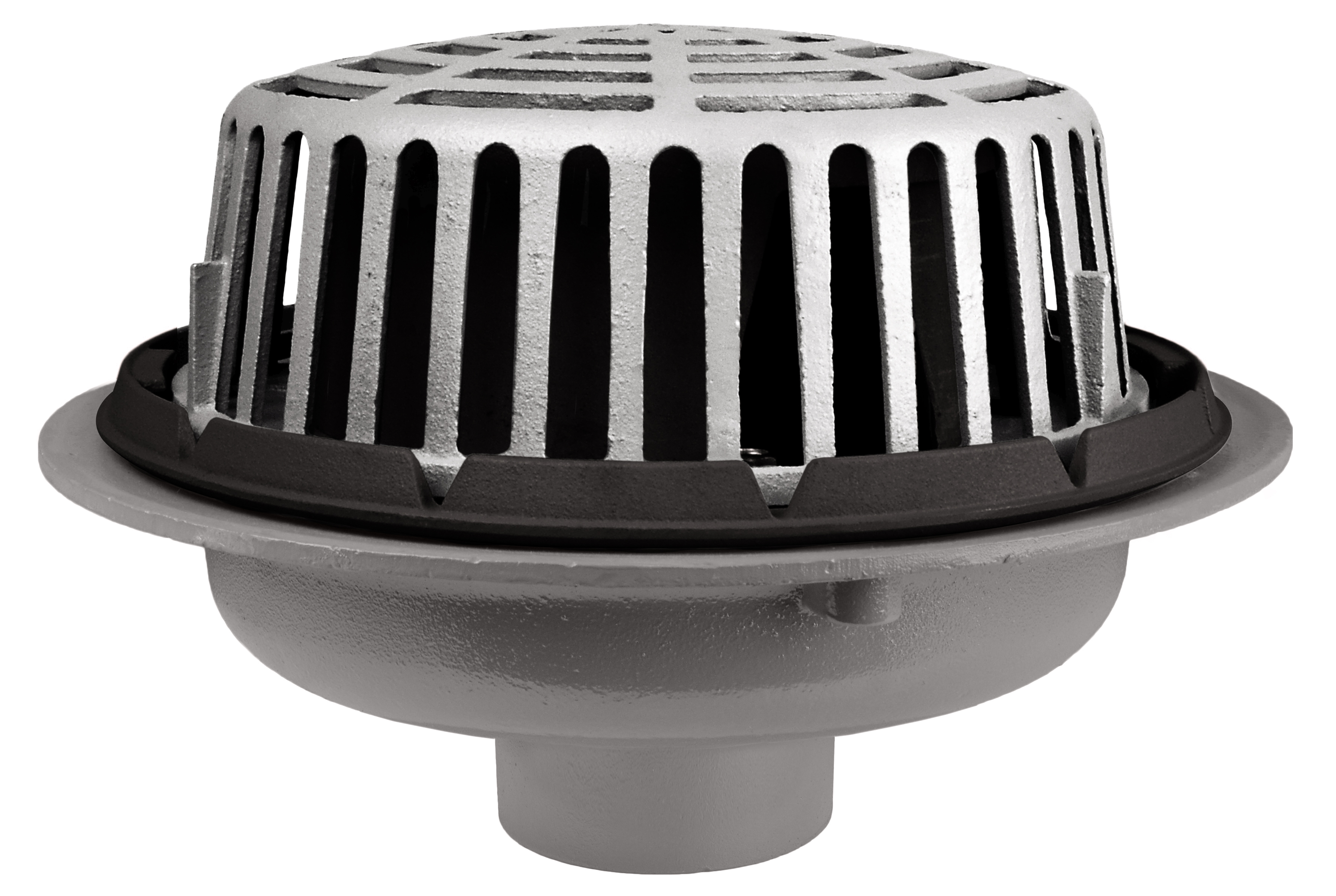

Aluminum Dome - 3'' No-Hub w/ Aluminum Dome Strainer
Roof Drains
15" Adjustable Weir Roof Drain
Cast Iron - No-Hub Connection
- • For use on flat roofs. Low profile dome prevents debris from entering the drain line.
- • The anchor flange and membrane clamp provide a secure grip of membrane and roof flashing materials.
- • Adjustable weir allows versatility for location and sizing
- • Prop 65 WARNING
Product Information
- Options: Add suffix to item no.
- 9 = 90-deg. Side Outlet Connection (1)
- 2 = 2" High SS Perforated Extension
- 4 = 4" High SS Perforated Extension
- P = Top Mount Sump Receiver
- S = Sump Receiver
- C = Underdeck Clamp
- E = Adjustable Extension Assembly Kit
- G = 2" High SS Perforated Gravel Guard
- K = 4" High SS Perforated Gravel Guard
- 1: Not available for 6" drains.
| Connection 1 Size | 3 IN |
| Connection 1 Type | No-Hub |
| Dome/Grate Material | Aluminum |
| Drain Diameter | 15 IN |
| Type | Weir Roof Drain |
No rough-in installation documents available for this product.
No finish installation documents available for this product.
