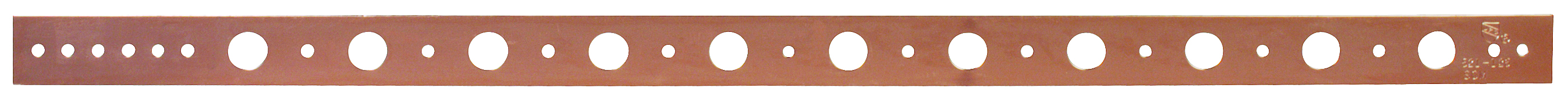

521-126

521-126

CU Plated - 1-1/4'' × 26'' 16-Ga. For 1/2'' Copper

Stub Out Brackets

Flat Brackets

• If soldering, Heat the tube, not the bracket
• Galvanized models for use with PipeEye or other metal stud insulators.
• Copper-plated models have extruded holes for improved soldering surface.
• IAPMO PS - 42

Product Information

	Item No	Description	Pkg	Min Qty	Case Qty
CU Plated
	521-118	1-1/4'' × 20'' 16-Ga. For 1/2'' Copper	B	50	50
	521-118R	1-1/4'' × 20'' 16-Ga. For 1/2'' Copper w/ Extruded Holes	B	25	25
▶	521-126	1-1/4'' × 26'' 16-Ga. For 1/2'' Copper	B	50	50
	521-810	1-3/4'' × 20'' 16-Ga. For 1/2'', 3/4'' And 1'' Copper	B	50	50
	521-820	1-3/4'' × 20'' 24-Ga. For 1/2'', 3/4'' And 1'' Copper w/ Extruded Holes	B	50	50
Galvanized
	521-318	2'' × 20'' 14-Ga.	B	50	50
	521-360	2'' × 26'' 14-Ga.	B	50	50
	521-3725B	3'' × 4-3/4'' L-Bracket, 14-Ga.	B	100	100

Finish	Copper Plated
Length	26 IN
Material	Steel
Product Type	Copper
Size	1/2 IN

No rough-in installation documents available for this product.

No finish installation documents available for this product.

No related items available for this product.

Specification Sheets

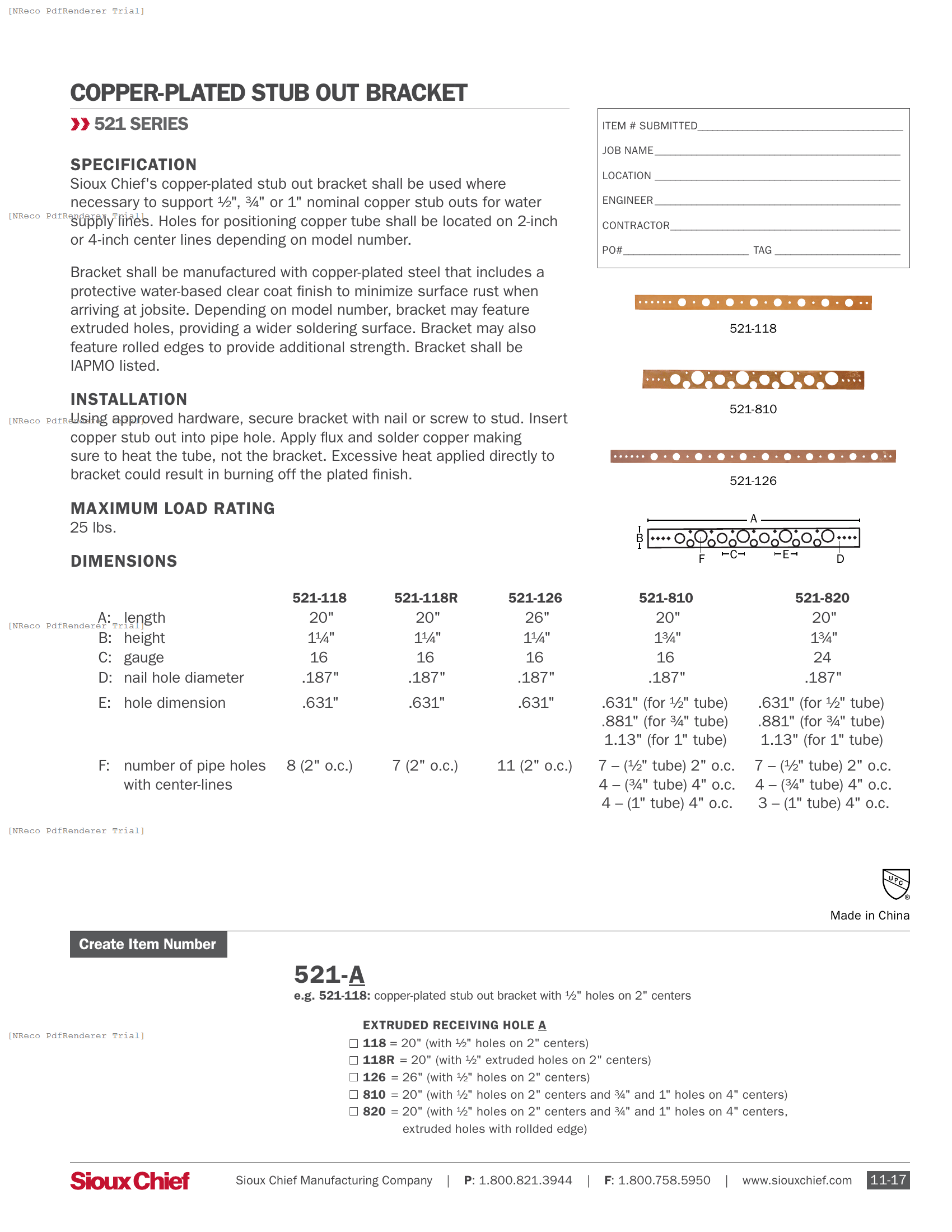

521 SERIES - COPPER-PLATED STUB OUT BRACKET - SPEC SHEET.PDF Specification Document

521 SERIES - COPPER-PLATED STUB OUT BRACKET - SPEC SHEET.PDF
