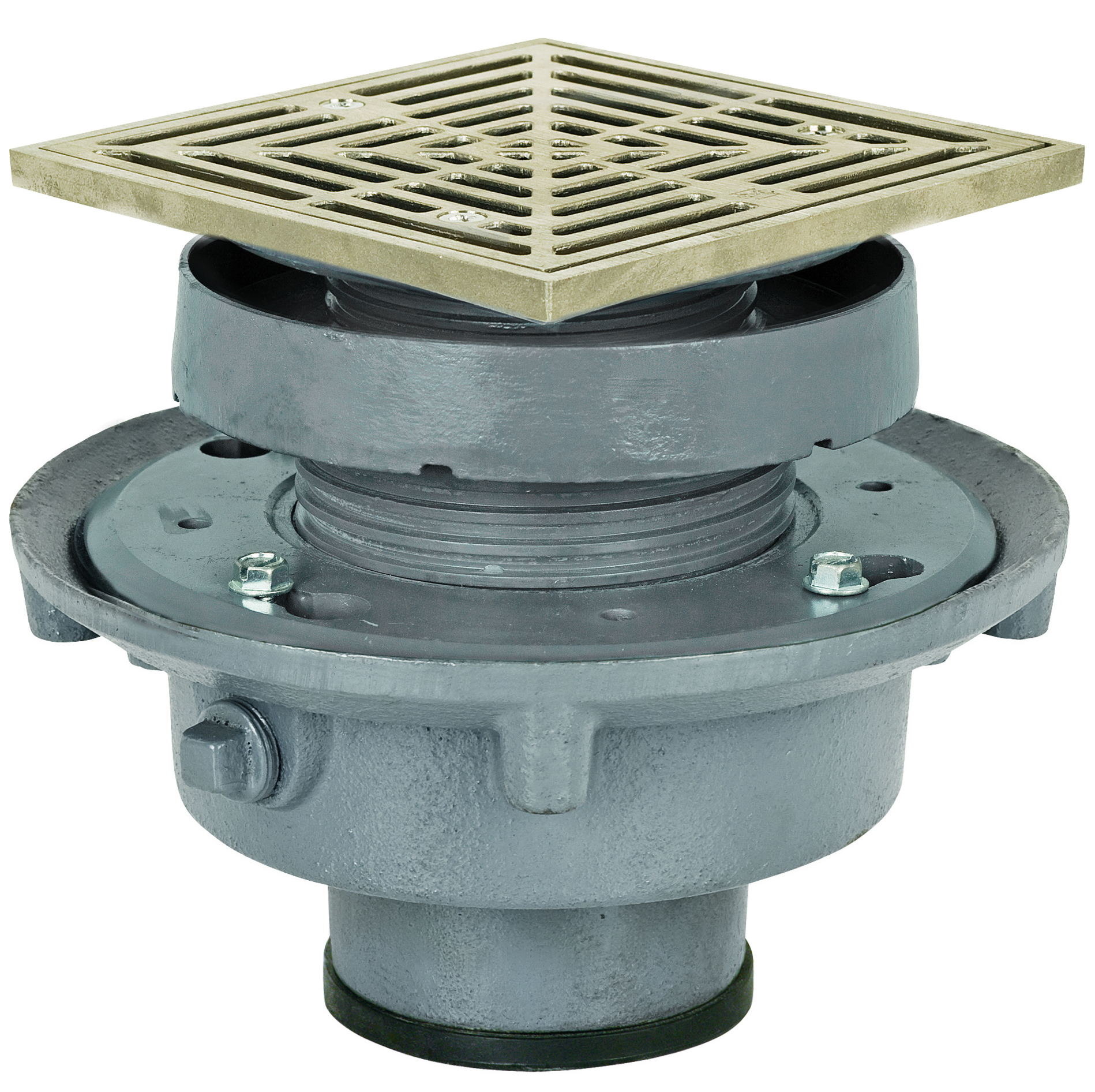

Complete Assembly - 2'' PJ Conn. - 5-7/8'' Sqr Nikl-Brnz Ring & Strainer
FinishLine™ Above-Grade Floor Drains
Cast Iron - Push-Joint Connection
5-1/2" Tops
- • Cast iron base adapter with ductile iron clamping collar, coring sleeve, head adapter, poly coring plug, and neoprene push-joint gasket
- • Patent #7,735,512
- • Adjustable AFTER the pour
- • Nickel bronze and stainless steel strainers for use in pedestrian traffic areas
- • Prop 65 WARNING
Product Information
- Options: Add suffix to item no.
- V = Vandal-Resistant Strainer
- B = Complies with BABAA (1)
- E = Extended ring (1)
- P = Push-joint gasket to fit Sch. 40 pipe (2)
- 1: For round nickel bronze ring/strainer only. 2: For 3" drains only..
| Item No | Description | Pkg | Min Qty | Case Qty | |
|---|---|---|---|---|---|
| Rough-In Fixture | |||||
| BI | 1 | 1 | |||
| BI | 1 | 1 | |||
| Complete Assembly | |||||
| ▶ | BI | 1 | 1 | ||
| BI | 1 | 1 | |||
| BI | 1 | 1 | |||
| BI | 1 | 1 | |||
| BI | 1 | 1 | |||
| BI | 1 | 1 | |||
| BI | 1 | 1 | |||
| BI | 1 | 1 | |||
| Brand | FinishLine™ |
| Connection 1 Size | 2 IN |
| Connection 1 Type | Push Joint |
| Load Rating | Light-Duty |
| Strainer Material | Nickel-Bronze |
| Strainer Size | 5-7/8 IN |
| Strainer Style | Square |
| Type | Above-Grade |
No rough-in installation documents available for this product.
No finish installation documents available for this product.
