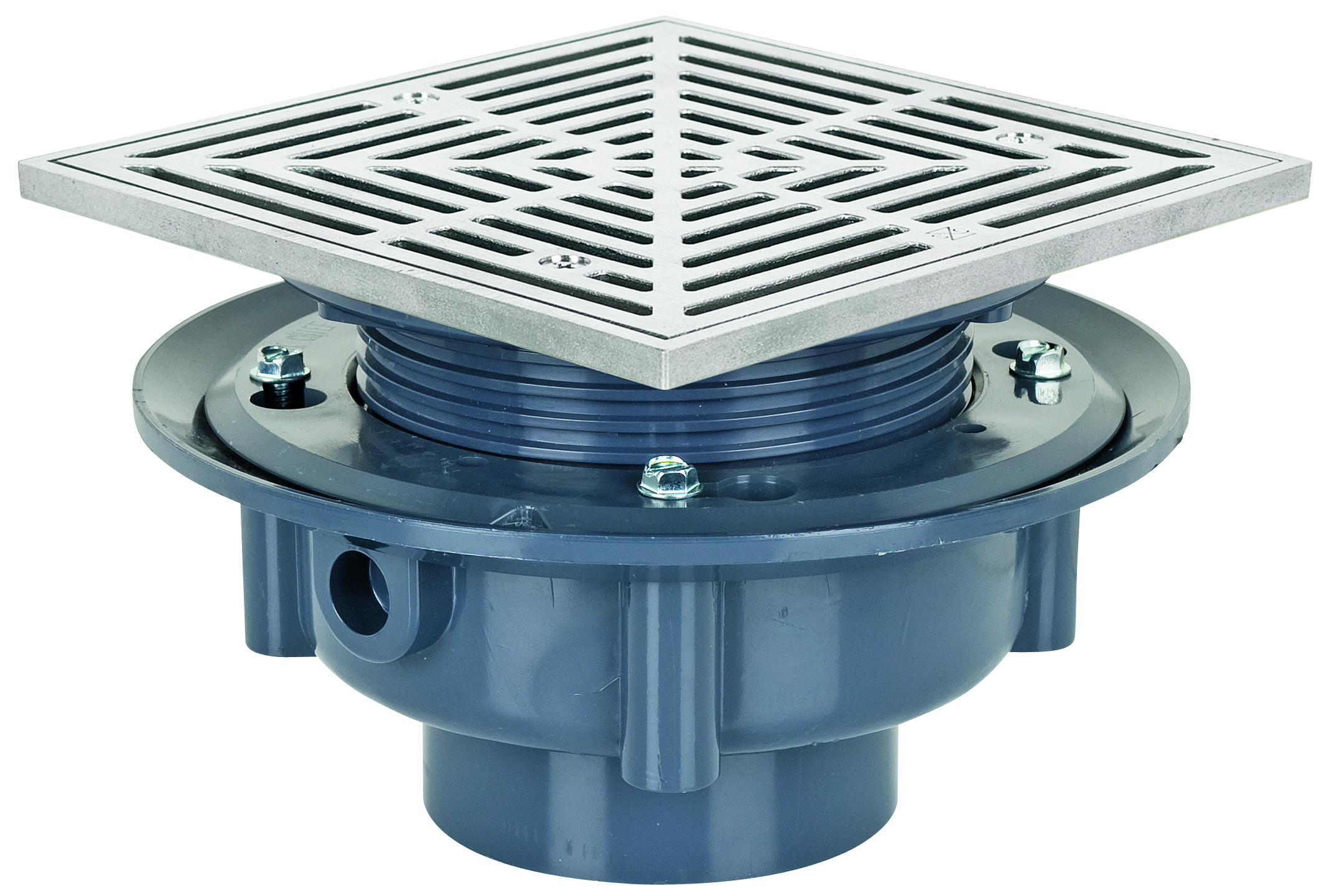

Stainless Steel Ring & Strainer - 4'' PVC Hub - 7'' Sqr Ring & Strainer
Above-Grade Floor Drains
PVC/ABS - Sch. 40 Hub Connection
6-1/2" Tops
- • Acme threads are stronger than pipe threads and prevent cross-threading
- • Nickel bronze and stainless steel strainers for use in pedestrian traffic areas
- • ABS/PVC base adapter with ABS clamping collar and head adapter
- • Ductile iron head/collar available
- • Prop 65 WARNING
Product Information
- Options: Add suffix to item no.
- V = Vandal-Resistant Strainer
- H = Hinged Strainer
- Y = Ductile Iron Head Adapter (1)
- D = Ductile Iron Clamping Collar (1)
- T = Tapped Trap Primer Connection - 1/2" FIP
- E = Extended Ring (2)
- B = Complies with BABAA (2)
- M = Medium-Duty Strainer (3,000 lbs. safe-load) (3)
- 1: In lieu of ABS (standard). 2: For round nickel-bronze ring/strainer only. 3: For round 304 SS ring/strainer only.
| Item No | Description | Pkg | Min Qty | Case Qty | |
|---|---|---|---|---|---|
| Nickel-Bronze Ring & Strainer | |||||
| BI | 1 | 2 | |||
| BI | 1 | 1 | |||
| BI | 1 | 6 | |||
| BI | 1 | 2 | |||
| BI | 1 | 6 | |||
| BI | 1 | 2 | |||
| BI | 1 | 6 | |||
| BI | 1 | 2 | |||
| BI | 1 | 6 | |||
| BI | 1 | 2 | |||
| BI | 1 | 6 | |||
| Stainless Steel Ring & Strainer | |||||
| BI | 1 | 2 | |||
| BI | 1 | 6 | |||
| BI | 1 | 2 | |||
| BI | 1 | 6 | |||
| BI | 1 | 2 | |||
| BI | 1 | 6 | |||
| BI | 1 | 1 | |||
| BI | 1 | 6 | |||
| BI | 1 | 1 | |||
| BI | 1 | 1 | |||
| ▶ | BI | 1 | 1 | ||
| BI | 1 | 1 | |||
| Connection 1 Size | 4 IN |
| Connection 1 Type | Hub |
| Load Rating | Light-Duty |
| Strainer Material | Stainless Steel |
| Strainer Size | 7 IN |
| Strainer Style | Square |
| Type | Above-Grade |
No rough-in installation documents available for this product.
No finish installation documents available for this product.
