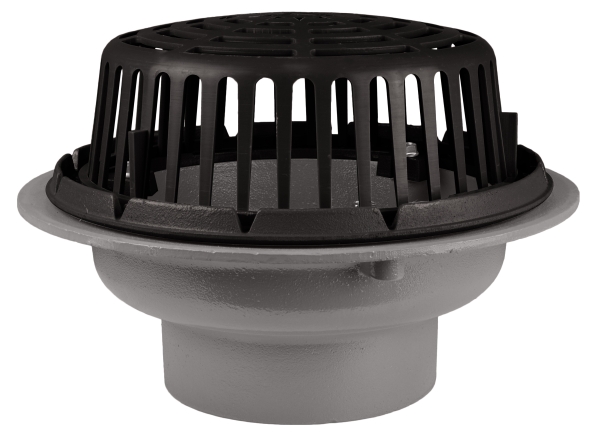

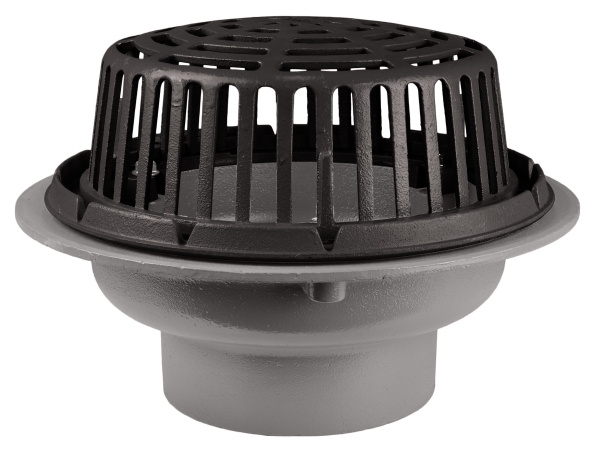

Poly Dome - 6'' No-Hub w/ Poly Dome Strainer
Roof Drains
15" Roof Drain - Bravo Series
Cast Iron - No-Hub Connection
- • For use on flat roofs. Low profile dome prevents debris from entering the drain line.
- • The anchor flange and membrane clamp provide a secure grip of membrane and roof flashing materials.
- • Prop 65 WARNING
- • ASME - A112.6.4
Product Information
- Options: Add suffix to item no.
- 9 = 90-deg. Side Outlet Connection (1)
- 2 = 2" High SS Perforated Extension
- 4 = 4" High SS Perforated Extension
- D = 6" High SS Perforated Dome Cover
- P = Top Mount Sump Receiver
- S = Sump Receiver
- C = Underdeck Clamp
- E = Threaded Adjustable Extension
- G = 2" High SS Perforated Gravel Guard
- K = 4" High SS Perforated Gravel Guard
- H = 4" High Internal Water Dam
- W = 2" High External Water Dam
- 1: Not available for 6" or 8" drains.
| Connection 1 Size | 6 IN |
| Connection 1 Type | No-Hub |
| Dome/Grate Material | Polymer |
| Drain Diameter | 15 IN |
| Type | Roof Drain |

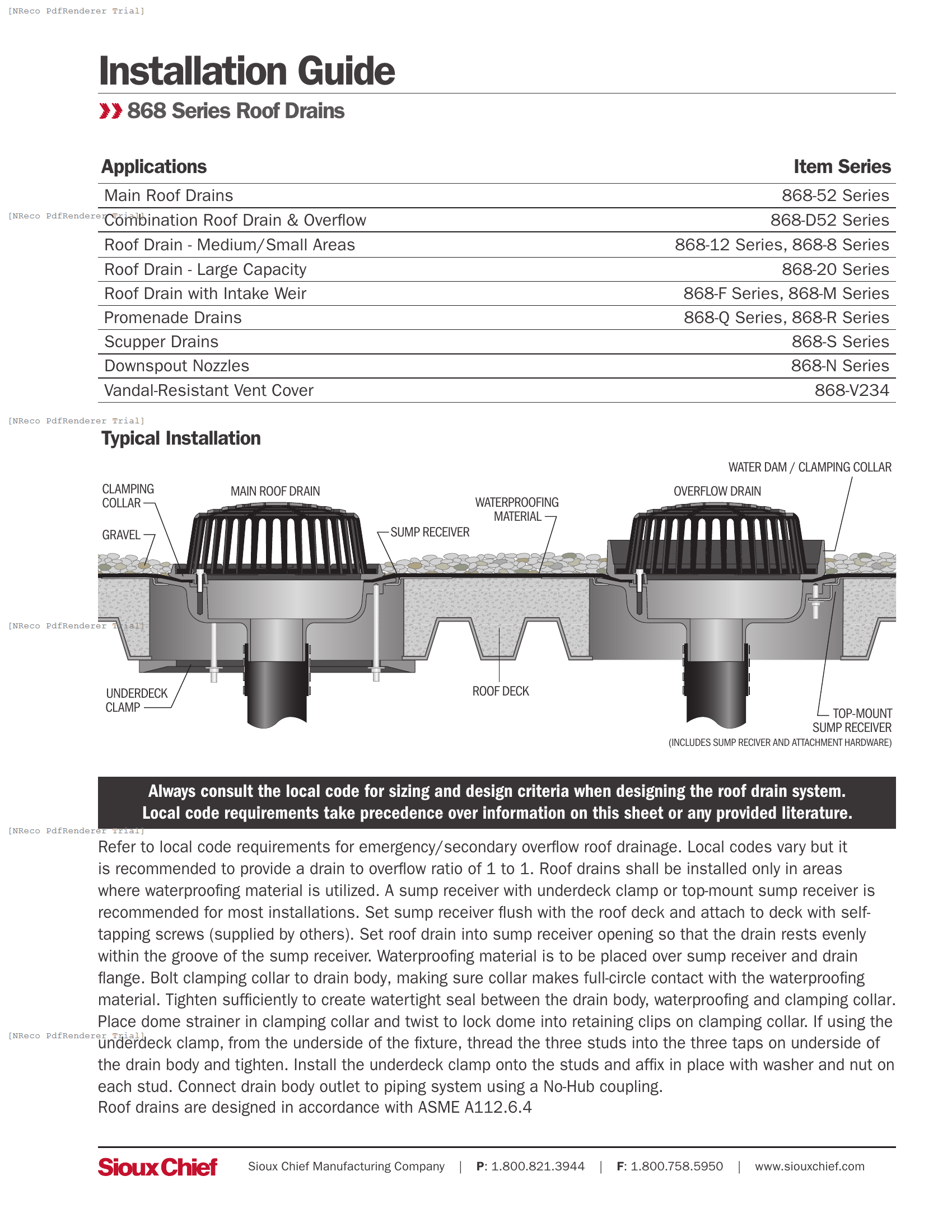

No rough-in installation documents available for this product.
No finish installation documents available for this product.
